Pontiac Grand Prix Main Engine Fuse Box/Block Circuit Breaker Diagram

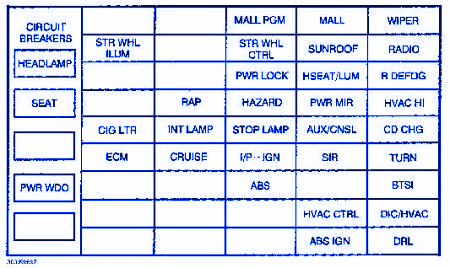

Pontiac Grand Prix 2001 Main Engine Fuse Box/Block Circuit Breaker Diagram

Fuse SymbolDescription
Circuit Breaker
HEADLMPHeadlamps
PWR SEATPower seat, Power lumbar
PWR WDOPower Windows
Fuse
MALL PGMMall Module-Program
MALLMall Module
ECMECM Ignition
CRUISECruise Control
I/P-IGNChime/Mall Module, Claster, Trip Computer, Head-Up Display, Brake Transacle Shift Interlock
SIRSuppleniental Inflainble Retraint (Air Bag)
TURNTurn Signal
ABSAnti Lock Brakes
BTSIPKNDI, Brake Transaxle Shift Interlock
HVAC CTRLBlower control, HVAC
DSC/HVACRear Defog, HVAC, Driver Information Center, Daytime Running Lamps, Heated Seats
ABS IGNAnti Lock Brakes Ignition
DRLDaytime Running Lamps
WIPERWipers
SUNROOFSunroof
RADIORadio, Antenna
PWR LOCKMall Module-Power Locks
HSEAT/LUMHeated Seats, Power Lumbar
R DEFOGRear Defog
HAZARDHazard Flashers
PWR MIRPower Mirrors
HVAC HIHVAC Blower - Hi
CIG LTRCigarette Lighter, ALDI, Floor Crouse Auxiliary Outlet
RAPRelay Accessory Power, Mall Module
STOPLPStoplamp
AUX/CNSLAuxiliary Power, Overhead Console
STR WHL ILUMSteering Wheel Illumination
STR WHL CTRLSteering Wheel Control
INT LampMall Module-Interior Lamps
CD CHGRCD Charger

Main Engine Fuse Box Pontiac
